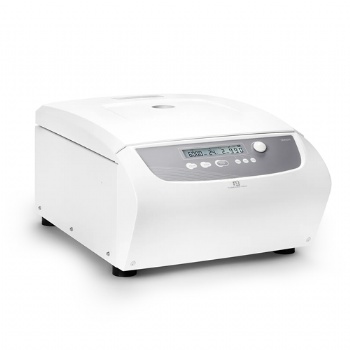

Model Name: Multi-purpose Low Speed Centrifuge
Model No.: DM0636
Centrifuge is used to separate liquid and solid particles or components in liquid mixture. Fangjing centrifuge series includes palm micro centrifuges, high-speed centrifuges (refrigerate and non-refrigerated), hematocrit centrifuges and low speed centrifuges.
Applications
DM0636 is ideal for chemistry, cytology, research laboratories, industrial laboratories and others. This is suitable for tubes with caps, blood collection or urine tubes. Swing-out rotors and adapters can be compatible with standard tubes up to 100mL at low speed.
Features
• Speed range from 300 to 6000 rpm.
• Maximum capacity: 100mL×4.
• 9 Acceleration/10 brake speed settings to ensure optional separation.
• A wide range of rotors optional (fixed angle and swing-out rotors).
• Automatic rotor identification.
• Pulse key for quick spin.
• 9 procedures stored in memory makes the operation much simplified.
• Maintenance free brushless DC motor.
• Suitable for tubes with caps, blood collection or urine tubes.
• Comprehensive and versatile range of accessories.
Specifications
Max. Speed/Increment: 300 to 6000/10rpm
Max. RCF: 4100×g
Speed Accuracy: ±20rpm
Rotor Type: 100mL×4
Run Time: 30sec. to 99mins or HOLD (Continuous Operation)
Driving Motor: Brushless DC Motor
Display: LCD
Program Money: 9
Safety Devices: Door Interlock, Protection Over-speed & Over-temperature Detection
Acceleration / Deceleration: 9↑/10↓ Steps
Power: Single-phase, AC100~240V/50Hz/60Hz, 6.3A, 660W
Noise Level: ≤65dB
Dimensions (D×W×H): 570×445×296mm
Weight: 36kg
Advanced Features: Speed/RCF Switch, Rotor Identification

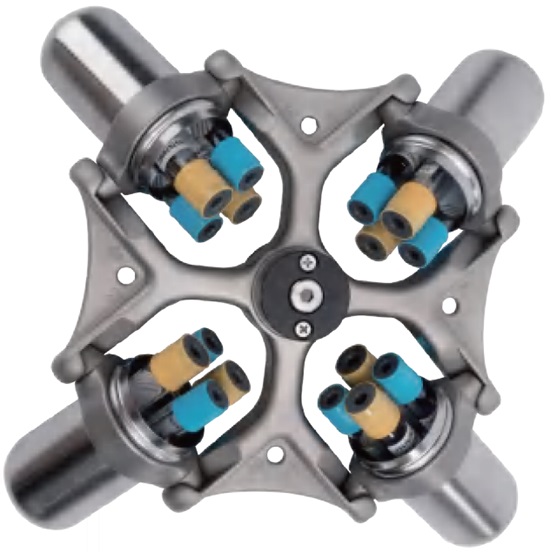

SE4-100 (Standard Accessory) | Cat. No. 19400041 | ||||
For DM0636 Max. Speed: 4000rpm Max. RCF: 2950×g Rotor Material: Stainless Steel Body and Adapter |
| ||||
|
|
|
|
| |
Cat. No. |
19400045 |
19400044 |
19400043 |
19400042 | |||||||
Bucket | ×4 | ||||||||||
Tubes | ×36 | ×16 | ×8 | ×4 | ×4 | ×4 | ×8 | ×20 | |||
φ×L mm | 13×75 | 13×100 | 16×100 | 17×105 | 17×120 | 29.5×100 | 38×108 | 38×104 | 29.5×100 | 17×120 13×100 13×75 | 13×100 13×75 |
Tube |
|
|
|
|
|
|
|
|
|
|
|
Adapter |
With Plug | - | - |
A15V |
A50V | - |
A10P80 |
A100P50/80 |
A100P15 |
A100P10 | |
A50V | |||||||||||
Package | 36 | - | - | 16 | 8 | - | 4 | 4 | 4 | 4 | |
Tubes Per Rotor | 36 | 36 | 16 | 16 | 16 | 8 | 4 | 4 | 4 | 8 | 20 |
Radius (cm) | 14 | 16.5 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | 15.1 | 14.7 |
Max. RCF (g·force) | 2500 | 2950 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2700 | 2630 |
Available Rotors
S2-MP | Cat. No.19400062 |
DM0636 Max. Speed: 4000rpm Max. RCF: 2200×g Rotor Capacity: Micro-plates 384-PCR / 96-PCR / Elisa Plates×8pcs, Deep Well Plates×4pcs Rotor Material: Stainless Steel Body and Aluminum Buckets |
|
AS12-PCR8 | Cat. No.19400036 |
DM0636 Max. Speed: 4000rpm Max. RCF: 4020×g Rotor Capacity: PCR 8 Strips×12 Rotor Material: Aluminum Bio-sealing: Yes |
|
AS30-2 | Cat. No.19400034 |
DM0636 Max. Speed: 6000rpm Max. RCF: 4020×g Rotor Capacity: 2mL×30 Rotor Material: Aluminum Bio-sealing: Yes |
|
AS60-2 | Cat. No.19400037 |
DM0636 Max. Speed: 6000rpm Max. RCF: 4020×g Rotor Capacity: 2mL×60 Rotor Material: Aluminum Bio-sealing: Yes |
|
AS6-50V (Cone Bottom) | Cat. No.19400038 |
DM0636 Max. Speed: 6000rpm Max. RCF: 4020×g Rotor Capacity: 50mL×6 or 15mL×6 Rotor Material: Aluminum Bio-sealing: Yes |
|
AS18-5V (Cone Bottom) | Cat. No.19400035 |
DM0636 Max. Speed: 6000rpm Max. RCF: 4020×g Rotor Capacity: 5mL×18 Rotor Material: Stainless Steel Body and Aluminum Buckets Bio-sealing: Yes |
|
A8-50 (Cone Bottom) | Cat. No.19400039 |
DM0636 Max. Speed: 5000rpm Max. RCF: 3960×g Rotor Capacity: 50mL×8 or 15mL×16 Rotor Material: Stainless Aluminum Body and Stainless Steel Adapter Default Adapters: SE100P31×8, SE100P17×16 |
|
A30-15 (Cone Bottom) | Cat. No.19400040 |
DM0636 Max. Speed: 4500rpm Max. RCF: 3210×g Rotor Capacity: 15mL×30 or 15mL×16 Rotor Material: Aluminum Body and Stainless Steel Adapter |
|
