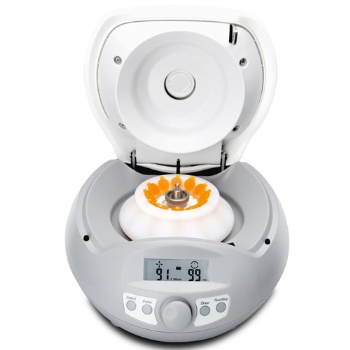

Model Name: High Speed Mini Centrifuge
Model No.: D2012 Plus
Centrifuge is used to separate liquid and solid particles or components in liquid mixture. Fangjing centrifuge series includes palm micro centrifuges, high-speed centrifuges (refrigerate and non-refrigerated), hematocrit centrifuges and low speed centrifuges.
Applications
Micro centrifuges are mainly used in molecular biology laboratories for Plasmid extraction, Nucleic acid purification, Pre-sequencing processing and other applications including extracting of DNA/RNA samples, sedimentation biological components, biochemical and chemical analyses of micro-samples.
Features
• Pulse operation for fast and convenient quick spins.
• Speed up to 15000rpm (15100×g).
• Brushless DC motor drive quickly to the target speed.
• Smooth and quiet operation (noise level≤54dB).
• Automatic lid-lock and over-speed detection.
• Passed rigorous explosion-proof test, certificated with CE, cTUVus, FCC.
Specifications
Max. Speed/Increment: 15000rpm (500 to 15000)/100rpm
Max. RCF/Increment: 15100×g/100×g
Speed Accuracy: ±20rpm
Rotor Capacity: 0.2/0.5/1.5/2mL×12
Run Time: 30sec to 99 or Continuous Operation
Acceleration/Braking Time: 11s↑/9s↓
Driving Motor: Brushless DC Motor
Safety Devices: Door Interlock, Over-speed Detection, Over-temperature Detection, Automatic Internal Diagnosis
Power: Single-phase, AC100~240V/50Hz/60Hz, 3A 100W
Noise Level: ≤54dB
Dimensions (D×W×H): 255×245×140mm
Weight: 6kg
Other Functions: Speed/RCF Switch, Short-time Run Function, Sound-Alert Function
Available Rotor
A12-2P (For D2012 Plus Only) | Cat. No.19400010 |
Max. Speed: 15000rpm Max. RCF: 15100×g Rotor Capacity: 1.5mL/2.0mL×12, 0.2mL×12, 0.5mL×12 Rotor Material: High Strength Plastic Available Rotor Adapters: A02P2, A05P2 |
|
Available Adapters
A02P2 | Cat. No.19500001 | A05P2 | Cat. No.19500002 |
0.2mL Rotor Adapter Used with A12-2, A12-2P, AS24-2, A24-2P 24pcs/pk |
| 0.5mL Rotor Adapter Used with A12-2, A12-2P, AS24-2, A24-2P 24pcs/pk |
|
